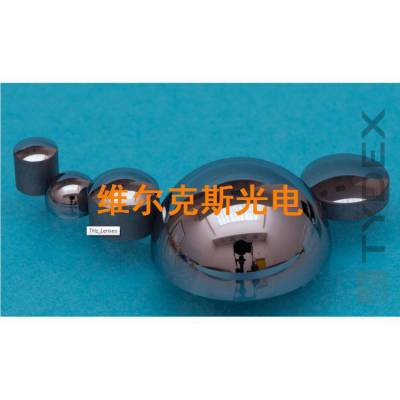

TYDEX公司 太赫兹THz透镜
Tydex提供TPX和HRFZ-Si材料的THz透镜，TPX和HRFZ-Si也是目前太赫兹透镜***常***的材料。除了这两种常用材料之外，Tydex还提供包括BaF2，BK7，IR-FS，UV-FS，UV-FS2，Ge，Si，ZnSe，CaF2，Sapphire，Crystal quartz，KBr， ZnS等材料的太赫兹透镜。
1. TPX透镜
主要参数:
材料 | TPX |
形状 | 平凸, 双凸 |
可达直径, mm | to 100 |
直径公差, mm | + /-0.25 |
通光口径, % | >=90 |
有效焦距公差, % | +/- 1 |
表面质量 (两面抛光), scr/dig | 80/50 |
表明精度, mm | ± 0.01 和理想球面和平面的差 |
以下规格的TPX透镜有库存:
No. | 直径 | 有效焦距 | |
mm | inches | mm | |
1 | 25.4 | 1 | 25 |
2 | 25.4 | 1 | 50 |
3 | 25.4 | 1 | 100 |
4 | 25.4 | 1 | 200 |
5 | 38.1 | 1.5 | 50 |
6 | 38.1 | 1.5 | 75 |
7 | 38.1 | 1.5 | 100 |
8 | 38.1 | 1.5 | 150 |
9 | 38.1 | 1.5 | 200 |
10 | 50.8 | 2 | 50 |
11 | 50.8 | 2 | 75 |
12 | 50.8 | 2 | 100 |
13 | 50.8 | 2 | 150 |
14 | 50.8 | 2 | 200 |
*所有有效焦距都是针对300m波长而计算的。在THz波段(30-3000 m)边界和可见光下，折射率色散产生有效焦距公差和生产产生的有效焦距公差相比是可以忽略不计的。
2. HRFZ-Si透镜
我们提供衍射型HRFZ-Si透镜: hyper-/hypo-/hemispherical, bullet, and meniscus.
主要参数:
材料 | HRFZ-Si |
外型 | 球形，超半球形 |
半球形 | |
次半球形和子（和谐）弹型 | |
直径, mm | 2-150 |
直径公差, mm | +/-0.1 |
通光口径, % | >=90 |
表面质量, scr/dig | 80/50 |
表面精度, mm | +/-0.01和理想球面和平面的差 |
膜层 | 高透膜 |
抛光的球型HRFZ-Si(直径2.0, 4.0, 6.0, 8.0, 10.0,和12.0 mm)是有库存的。根据定制需求，超/低/半球型也可以在2个星期内提供，平板可以抛光到定制的厚度。
我们也提供HRFZ-Si半月透镜。
主要参数:
材料 | HRFZ-Si |
外型 | 平行平板 |
可达直径, mm | 150 |
直径加工公差,mm | 0 |
厚度公差, mm | +/0.1 |
通光口径, % | >=90 |
平行度, arc. min | 3 |
表面质量, scr/dig | 60/40 |
表面精细度, mm | +/-0.01和理想平板的差异 |
膜层 | 高透膜层 |
以下的HRFZ-Si meniscus透镜有库存:
No. | 直径 | 有效焦距 | |
mm | inches | mm | |
1 | 25.4 | 1 | 25 |
2 | 25.4 | 1 | 50 |
3 | 25.4 | 1 | 100 |
4 | 25.4 | 1 | 200 |
5 | 38.1 | 1.5 | 50 |
6 | 38.1 | 1.5 | 75 |
7 | 38.1 | 1.5 | 100 |
8 | 38.1 | 1.5 | 150 |
9 | 38.1 | 1.5 | 200 |
10 | 50.8 | 2 | 25 |
11 | 50.8 | 2 | 50 |
12 | 50.8 | 2 | 75 |
13 | 50.8 | 2 | 100 |
14 | 50.8 | 2 | 150 |
15 | 50.8 | 2 | 200 |
*所有有效焦距都是针对300m波长而计算的。在THz波段(30-3000 m)边界和可见光下，折射率色散产生有效焦距公差和生产产生的有效焦距公差相比是可以忽略不计的
Tydex HRFZ-Si透镜的标准规格
Description | Diameter, mm | Effective Focal Length, mm | Thickness, | Part Number |
sphere | 2 | - | LSH-HRFZ-SI-D2 | |
sphere | 3 | - | LSH-HRFZ-SI-D3 | |
sphere | 4 | - | LSH-HRFZ-SI-D4 | |
sphere | 4.5 | - | LSH-HRFZ-SI-D4.5 | |
sphere | 4.9 | - | LSH-HRFZ-SI-D4.9 | |
sphere | 5 | - | LSH-HRFZ-SI-D5 | |
sphere | 6 | - | LSH-HRFZ-SI-D6 | |
sphere | 7 | - | LSH-HRFZ-SI-D7 | |
sphere | 8 | - | LSH-HRFZ-SI-D8 | |
sphere | 9 | - | LSH-HRFZ-SI-D9 | |
sphere | 9.5 | - | LSH-HRFZ-SI-D9.5 | |
sphere | 9.85 | - | LSH-HRFZ-SI-D9.85 | |
sphere | 10 | - | LSH-HRFZ-SI-D10 | |
sphere | 10.714 | - | LSH-HRFZ-SI-D10.714 | |
sphere | 12 | - | LSH-HRFZ-SI-D12 | |
sphere | 12.8 | - | LSH-HRFZ-SI-D12.8 | |
sphere | 13.5 | - | LSH-HRFZ-SI-D13.5 | |
sphere | 15 | - | LSH-HRFZ-SI-D15 | |
hyper-hemisphere | 2 | 1.3 | LHS-HRFZ-SI-D2-T1.3 | |
hyper-hemisphere | 2 | 1.3 | LHS-HRFZ-SI-D2-T1.3-C | |
hyper-hemisphere | 2 | 1.37 | LHS-HRFZ-SI-D2-T1.37-C | |
hyper-hemisphere | 2 | 1.41 | LHS-HRFZ-SI-D2-T1.41 | |
hyper-hemisphere | 3 | 1.6 | LHS-HRFZ-SI-D3-T1.6 | |
hyper-hemisphere | 3 | 1.62 | LHS-HRFZ-SI-D3-T1.62 | |
hyper-hemisphere | 3 | 1.7 | LHS-HRFZ-SI-D3-T1.7 | |
hyper-hemisphere | 3 | 1.8 | LHS-HRFZ-SI-D3-T1.8 | |
hyper-hemisphere | 3 | 1.88 | LHS-HRFZ-SI-D3-T1.88 | |
hyper-hemisphere | 3 | 1.94 | LHS-HRFZ-SI-D3.02-T1.94 | |
hyper-hemisphere | 3 | 1.96 | LHS-HRFZ-SI-D3-T1.96 | |
hyper-hemisphere | 3 | 2 | LHS-HRFZ-SI-D3-T2 | |
hyper-hemisphere | 3.02 | 1.81 | LHS-HRFZ-SI-D3.02-T1.81 | |
hyper-hemisphere | 4 | 2.085 | LHS-HRFZ-SI-D4-T2.085 | |
hyper-hemisphere | 4 | 2.1 | LHS-HRFZ-SI-D4-T2.1 | |
hyper-hemisphere | 4 | 2.1 | LHS-HRFZ-SI-D4-T2.1-C | |
hyper-hemisphere | 4 | 2.2 | LHS-HRFZ-SI-D4-T2.2 | |
hyper-hemisphere | 4 | 2.3 | LHS-HRFZ-SI-D4-T2.3 | |
hyper-hemisphere | 4 | 2.36 | LHS-HRFZ-SI-D4-T2.36 | |
hyper-hemisphere | 4 | 2.5 | LHS-HRFZ-SI-D4-T2.5 | |
hyper-hemisphere | 4 | 2.5 | LHS-HRFZ-SI-D4-T2.5-С | |
hyper-hemisphere | 4 | 2.55 | LHS-HRFZ-SI-D4-T2.55 | |
hyper-hemisphere | 4 | 2.58 | LHS-HRFZ-SI-D4-T2.58 | |
hyper-hemisphere | 4 | 2.6 | LHS-HRFZ-SI-D4-T2.6 | |
hyper-hemisphere | 4 | 2.64 | LHS-HRFZ-SI-D4-T2.64 | |
hyper-hemisphere | 4 | 2.67 | LHS-HRFZ-SI-D4-T2.67 | |
hyper-hemisphere | 4 | 2.82 | LHS-HRFZ-SI-D4-T2.82 | |
hyper-hemisphere | 4 | 2.82 | LHS-HRFZ-SI-D4-T2.82-С | |
hyper-hemisphere | 4.5 | 2.88 | LHS-HRFZ-SI-D4.5-T2.88 | |
hyper-hemisphere | 4.9 | 2.8 | LHS-HRFZ-SI-D4.9-T2.8 | |
hyper-hemisphere | 4.9 | 2.8 | LHS-HRFZ-SI-D4.9-T2.8-C | |
hyper-hemisphere | 5 | 2.73 | LHS-HRFZ-SI-D5-T2.73 | |
hyper-hemisphere | 5 | 2.8 | LHS-HRFZ-SI-D5-T2.8 | |
hyper-hemisphere | 5 | 2.9 | LHS-HRFZ-SI-D5-T2.9 | |
hyper-hemisphere | 5 | 3.35 | LHS-HRFZ-SI-D5-T3.35 | |
hyper-hemisphere | 6 | 3.1 | LHS-HRFZ-SI-D6-T3.1 | |
hyper-hemisphere | 6 | 3.3 | LHS-HRFZ-SI-D6-T3.3 | |
hyper-hemisphere | 6 | 3.4 | LHS-HRFZ-SI-D6-T3.4 | |
hyper-hemisphere | 6 | 3.45 | LHS-HRFZ-SI-D6-T3.45 | |
hyper-hemisphere | 6 | 3.45 | LHS-HRFZ-SI-D6-T3.45-C | |
hyper-hemisphere | 6 | 3.47 | LHS-HRFZ-SI-D6-T3.47 | |
hyper-hemisphere | 6 | 3.5 | LHS-HRFZ-SI-D6-T3.5 | |
hyper-hemisphere | 6 | 3.53 | LHS-HRFZ-SI-D6-T3.53 | |
hyper-hemisphere | 6 | 3.7 | LHS-HRFZ-SI-D6-T3.7 | |
hyper-hemisphere | 6 | 3.7 | LHS-HRFZ-SI-D6-T3.7-С | |
hyper-hemisphere | 6 | 3.8 | LHS-HRFZ-SI-D6-T3.8 | |
hyper-hemisphere | 6 | 3.87 | LHS-HRFZ-SI-D6-T3.87 | |
hyper-hemisphere | 6 | 3.92 | LHS-HRFZ-SI-D6-T3.94 | |
hyper-hemisphere | 6 | 4 | LHS-HRFZ-SI-D6-T4 | |
hyper-hemisphere | 6 | 4 | LHS-HRFZ-SI-D6-T4-С | |
hyper-hemisphere | 7 | 4.1 | LHS-HRFZ-SI-D7-T4.1 | |
hyper-hemisphere | 7 | 4.45 | LHS-HRFZ-SI-D7-T4.45 | |
hyper-hemisphere | 7 | 4.55 | LHS-HRFZ-SI-D7-T4.55 | |
hyper-hemisphere | 7 | 4.6 | LHS-HRFZ-SI-D7-T4.6 | |
hyper-hemisphere | 8 | 4.22 | LHS-HRFZ-SI-D8-T4.22 | |
hyper-hemisphere | 8 | 4.4 | LHS-HRFZ-SI-D8-T4.4 | |
hyper-hemisphere | 8 | 4.4 | LHS-HRFZ-SI-D8-T4.4-С | |
hyper-hemisphere | 8 | 4.6 | LHS-HRFZ-SI-D8-T4.6 | |
hyper-hemisphere | 8 | 4.795 | LHS-HRFZ-SI-D8-T4.795 | |
hyper-hemisphere | 8 | 4.8 | LHS-HRFZ-SI-D8-T4.8 | |
hyper-hemisphere | 8 | 4.8 | LHS-HRFZ-SI-D8-T4.8-С | |
hyper-hemisphere | 8 | 5.17 | LHS-HRFZ-SI-D8-T5.17 | |
hyper-hemisphere | 8 | 5.17 | LHS-HRFZ-SI-D8-T5.17-С | |
hyper-hemisphere | 8 | 5.4 | LHS-HRFZ-SI-D8-T5.4 | |
hyper-hemisphere | 8 | 5.4 | LHS-HRFZ-SI-D8-T5.4-С | |
hyper-hemisphere | 9 | 4.3 | LHS-HRFZ-SI-D9-T4.3 | |
hyper-hemisphere | 9 | 5 | LHS-HRFZ-SI-D9-T5 | |
hyper-hemisphere | 9 | 5.7 | LHS-HRFZ-SI-D9-T5.7 | |
hyper-hemisphere | 9 | 5.9 | LSH-HRFZ-SI-D9-Т5.9 | |
hyper-hemisphere | 9 | 6.5 | LHS-HRFZ-SI-D9-T6.5 | |
hyper-hemisphere | 9.5 | 5.33 | LHS-HRFZ-SI-D9.5-T5.33 | |
hyper-hemisphere | 9.85 | 5.8 | LHS-HRFZ-SI-D9.85-T5.8-С | |
hyper-hemisphere | 9.85 | 6 | LHS-HRFZ-SI-D9.85-T6-С | |
hyper-hemisphere | 9.85 | 6.25 | LHS-HRFZ-SI-D9.85-T6.25-С | |
hyper-hemisphere | 10 | 5 | LHS-HRFZ-SI-D10-T5 | |
hyper-hemisphere | 10 | 5.5 | LHS-HRFZ-SI-D10-T5.5-С | |
hyper-hemisphere | 10 | 5.5 | LHS-HRFZ-SI-D10-T5.5-С | |
hyper-hemisphere | 10 | 5.5 | LHS-HRFZ-SI-D10-T5.5 | |
hyper-hemisphere | 10 | 5.7 | LHS-HRFZ-SI-D10-T5.7 | |
hyper-hemisphere | 10 | 5.8 | LHS-HRFZ-SI-D10-T5.8 | |
hyper-hemisphere | 10 | 5.82 | LHS-HRFZ-SI-D10-T5.82 | |
hyper-hemisphere | 10 | 5.825 | LHS-HRFZ-SI-D10-T5.825-C | |
hyper-hemisphere | 10 | 5.84 | LHS-HRFZ-SI-D10-T5.84 | |
hyper-hemisphere | 10 | 5.84 | LHS-HRFZ-SI-D10-T5.84-C | |
hyper-hemisphere | 10 | 5.85 | LHS-HRFZ-SI-D10-T5.85 | |
hyper-hemisphere | 10 | 5.9 | LHS-HRFZ-SI-D10-T5.9 | |
hyper-hemisphere | 10 | 5.92 | LHS-HRFZ-SI-D10-T5.92 | |
hyper-hemisphere | 10 | 5.95 | LHS-HRFZ-SI-D10-T5.95 | |
hyper-hemisphere | 10 | 5.96 | LHS-HRFZ-SI-D10-T5.96 | |
hyper-hemisphere | 10 | 6.05 | LHS-HRFZ-SI-D10-T6.05 | |
hyper-hemisphere | 10 | 6.06 | LHS-HRFZ-SI-D10-T6.06 | |
hyper-hemisphere | 10 | 6.1 | LHS-HRFZ-SI-D10-T6.1 | |
hyper-hemisphere | 10 | 6.12 | LHS-HRFZ-SI-D10-T6.12 | |
hyper-hemisphere | 10 | 6.14 | LHS-HRFZ-SI-D10-T6.14 | |
hyper-hemisphere | 10 | 6.15 | LHS-HRFZ-SI-D10-T6.15 | |
hyper-hemisphere | 10 | 6.16 | LHS-HRFZ-SI-D10-T6.16 | |
hyper-hemisphere | 10 | 6.19 | LHS-HRFZ-SI-D10-T6.19 | |
hyper-hemisphere | 10 | 6.19 | LHS-HRFZ-SI-D10-T6.19-C | |
hyper-hemisphere | 10 | 6.24 | LHS-HRFZ-SI-D10-T6.24 | |
hyper-hemisphere | 10 | 6.3140 | LHS-HRFZ-SI-D10-T6.3140 | |
hyper-hemisphere | 10 | 6.3264 | LHS-HRFZ-SI-D10-T6.3264 | |
hyper-hemisphere | 10 | 6.35 | LHS-HRFZ-SI-D10-T6.35 | |
hyper-hemisphere | 10 | 6.4 | LHS-HRFZ-SI-D10-T6.4 | |
hyper-hemisphere | 10 | 6.45 | LHS-HRFZ-SI-D10-T6.45 | |
hyper-hemisphere | 10 | 6.5 | LHS-HRFZ-SI-D10-T6.5 | |
hyper-hemisphere | 10 | 6.5 | LHS-HRFZ-SI-D10-T6.5-С | |
hyper-hemisphere | 10 | 6.6 | LHS-HRFZ-SI-D10-T6.6 | |
hyper-hemisphere | 10 | 6.7 | LHS-HRFZ-SI-D10-T6.7 | |
hyper-hemisphere | 10 | 6.73 | LHS-HRFZ-SI-D10-T6.73 | |
hyper-hemisphere | 10 | 6.73 | LHS-HRFZ-SI-D10-T6.73-C | |
hyper-hemisphere | 10 | 7 | LHS-HRFZ-SI-D10-T7 | |
hyper-hemisphere | 10 | 7.3 | LHS-HRFZ-SI-D10-T7.3 | |
hyper-hemisphere | 11.95 | 7.25 | LHS-HRFZ-SI-D11.95-T7.25 | |
hyper-hemisphere | 12 | 6.8 | LHS-HRFZ-SI-D12-T6.8 | |
hyper-hemisphere | 12 | 7.1 | LHS-HRFZ-SI-D12-T7.1 | |
hyper-hemisphere | 12 | 7.25 | LHS-HRFZ-SI-D12-T7.25 | |
hyper-hemisphere | 12 | 7.7 | LHS-HRFZ-SI-D12-T7.7 | |
hyper-hemisphere | 12 | 7.7 | LHS-HRFZ-SI-D12-T7.7-С | |
hyper-hemisphere | 12 | 7.72 | LHS-HRFZ-SI-D12-T7.72-С | |
hyper-hemisphere | 12 | 7.9 | LHS-HRFZ-SI-D12-T7.9 | |
hyper-hemisphere | 12 | 7.95 | LHS-HRFZ-SI-D12-T7.95 | |
hyper-hemisphere | 12 | 8 | LHS-HRFZ-SI-D12-T8 | |
hyper-hemisphere | 12 | 8.08 | LHS-HRFZ-SI-D12-T8.08-С | |
hyper-hemisphere | 12 | 8.3 | LHS-HRFZ-SI-D12-T8.3 | |
hyper-hemisphere | 12.8 | 7.77 | LHS-HRFZ-SI-D12.8-T7.77 | |
hyper-hemisphere | 13 | 8 | LHS-HRFZ-SI-D13-T8 | |
hyper-hemisphere | 13.5 | 8.36 | LHS-HRFZ-SI-D13.5-T8.36 | |
hyper-hemisphere | 14 | 8.69 | LHS-HRFZ-SI-D14-T8.69 | |
hyper-hemisphere | 15 | 9.4 | LHS-HRFZ-SI-D15-T9.4 | |
hyper-hemisphere | 15 | 10 | LHS-HRFZ-SI-D15-T10 | |
hyper-hemisphere | 15 | 10.05 | LHS-HRFZ-SI-D15-T10.05 | |
hyper-hemisphere | 15 | 10.1 | LHS-HRFZ-SI-D15-T10.1 | |
hyper-hemisphere | 15 | 10.4 | LHS-HRFZ-SI-D15-T10.4 | |
hyper-hemisphere | 20 | 12.55 | LHS-HRFZ-SI-D20-T12.55 | |
hyper-hemisphere | 20 | 13 | LHS-HRFZ-SI-D20-T13 | |
hyper-hemisphere | 20 | 14.14 | LHS-HRFZ-SI-D20-T14.14 | |
hyper-hemisphere | 24 | 15.3 | LHS-HRFZ-SI-D24-T15.3 | |
hyper-hemisphere | 25 | 14.8 | LHS-HRFZ-SI-D25-T14.8 | |
hyper-hemisphere | 25 | 15.5 | LHS-HRFZ-SI-D25-T15.5 | |
hyper-hemisphere | 25 | 15.8 | LHS-HRFZ-SI-D25-T15.8 | |
hyper-hemisphere | 25 | 16.08 | LHS-HRFZ-SI-D25-T16.08 | |
hyper-hemisphere | 25.4 | 16 | LHS-HRFZ-SI-D25.4-T16 | |
hyper-hemisphere | 51 | 32.9 | LHS-HRFZ-SI-D51-T32.9 | |
hyper-hemisphere | 101.6 | 64.77 | LHS-HRFZ-SI-D101.6-T64.77 | |
hyper-hemisphere | 150 | 100 | LHS-HRFZ-SI-D150-T100 | |
hemisphere | 2 | 1 | LHS-HRFZ-SI-D2-T1 | |
hemisphere | 2 | 1 | LHS-HRFZ-SI-D2-T1-C | |
hemisphere | 3 | 1.5 | LHS-HRFZ-SI-D3-T1.5 | |
hemisphere | 4 | 2 | LHS-HRFZ-SI-D4-T2 | |
hemisphere | 5 | 2.5 | LHS-HRFZ-SI-D5-T2.5 | |
hemisphere | 6 | 3 | LHS-HRFZ-SI-D6-T3 | |
hemisphere | 7.18 | 3.59 | LHS-HRFZ-SI-D7.18-T3.59 | |
hemisphere | 8 | 4 | LHS-HRFZ-SI-D8-T4 | |
hemisphere | 10 | 5 | LHS-HRFZ-SI-D10-T5 | |
hemisphere | 10 | 5 | LHS-HRFZ-SI-D10-T5-C | |
hemisphere | 12 | 6 | LHS-HRFZ-SI-D12-T6 | |
hemisphere | 12 | 6 | LHS-HRFZ-SI-D12-T6-С | |
hemisphere | 12.5 | 6.25 | LHS-HRFZ-SI-D12.5-T6.25 | |
hemisphere | 12.8 | 6.4 | LHS-HRFZ-SI-D12.8-T6.4 | |
hemisphere | 13.5 | 6.75 | LHS-HRFZ-SI-D13.5-T6.75 | |
hemisphere | 15 | 7.5 | LHS-HRFZ-SI-D15-T7.5 | |
hemisphere | 25 | 12.5 | LHS-HRFZ-SI-D25-T12.5 | |
hemisphere | 25 | 12.5 | LHS-HRFZ-SI-D25-T12.5 | |
hemisphere | 25 | 12.5 | LHS-HRFZ-SI-D25-T12.5 | |
hypo-hemisphere | 2 | 0.5 | LHS-HRFZ-SI-D2-T0.5 | |
hypo-hemisphere | 2 | 0.66 | LHS-HRFZ-SI-D2-T0.66 | |
hypo-hemisphere | 2 | 0.78 | LHS-HRFZ-SI-D2-T0.78 | |
hypo-hemisphere | 2 | 0.8 | LHS-HRFZ-SI-D2-T0.8 | |
hypo-hemisphere | 2 | 0.82 | LHS-HRFZ-SI-D2-T0.82 | |
hypo-hemisphere | 2 | 0.86 | LHS-HRFZ-SI-D2-T0.86 | |
hypo-hemisphere | 2 | 0.91 | LHS-HRFZ-SI-D2-T0.91 | |
hypo-hemisphere | 3 | 1.35 | LHS-HRFZ-SI-D3-T1.35 | |
hypo-hemisphere | 3 | 1.4 | LHS-HRFZ-SI-D3-T1.4 | |
hypo-hemisphere | 6 | 2.6 | LHS-HRFZ-SI-D6-T2.6 | |
hypo-hemisphere | 10 | 4.35 | LHS-HRFZ-SI-D10-T4.35 | |
hypo-hemisphere | 10 | 4.65 | LHS-HRFZ-SI-D10-T4.65 | |
hypo-hemisphere | 10 | 4.9 | LHS-HRFZ-SI-D10-T4.65 | |
hypo-hemisphere | 11.5 | 4.3 | LHS-HRFZ-SI-D11.5-T4.3 | |
hypo-hemisphere | 12 | 5 | LHS-HRFZ-SI-D12-T5 | |
hypo-hemisphere | 12 | 5.8 | LHS-HRFZ-SI-D12-T5.8 | |
hypo-hemisphere | 15 | 7.2 | LHS-HRFZ-SI-D15-T7.2 | |
hypo-hemisphere | 25 | 11.85 | LHS-HRFZ-SI-D25-T11.85 | |
hypo-hemisphere | 25.4 | 10 | LHS-HRFZ-SI-D25.4-T10 | |
bullet-lens | 2.83 | 2 | LB-HRFZ-SI-D2.83-T2 | |
bullet-lens | 3 | 1.65 | LB-HRFZ-SI-D3-T1.65-С | |
bullet-lens | 3 | 1.8 | LB-HRFZ-SI-D3-T1.8-С | |
bullet-lens | 3 | 1.95 | LB-HRFZ-SI-D3-T1.95-С | |
bullet-lens | 3 | 2.1 | LB-HRFZ-SI-D3-T2.1 | |
bullet-lens | 4 | 2.2 | LB-HRFZ-SI-D4-T2.2-С | |
bullet-lens | 4 | 2.4 | LB-HRFZ-SI-D4-T2.4-С | |
bullet-lens | 4 | 2.6 | LB-HRFZ-SI-D4-T2.6-С | |
bullet-lens | 4 | 2.67 | LB-HRFZ-SI-D4-T2.67 | |
bullet-lens | 4 | 2.91 | LB-HRFZ-SI-D4-T2.91 | |
bullet-lens | 4 | 3 | LB-HRFZ-SI-D4-T3 | |
bullet-lens | 4 | 3.13 | LB-HRFZ-SI-D4-T3.13 | |
bullet-lens | 4.05 | 2.88 | LB-HRFZ-SI-D4.05-T2.88 | |
bullet-lens | 4.05 | 3.03 | LB-HRFZ-SI-D4.05-T3.03 | |
bullet-lens | 4.05 | 3.16 | LB-HRFZ-SI-D4.05-T3.16 | |
bullet-lens | 5 | 3.03 | LB-HRFZ-SI-D5-T3.03 | |
bullet-lens | 5 | 3.13 | LB-HRFZ-SI-D5-T3.13 | |
bullet-lens | 5 | 3.9 | LB-HRFZ-SI-D5-T3.9 | |
bullet-lens | 6 | 3.2 | LB-HRFZ-SI-D6-T3.2 | |
bullet-lens | 6 | 3.3 | LB-HRFZ-SI-D6-T3.3-С | |
bullet-lens | 6 | 3.6 | LB-HRFZ-SI-D6-T3.6-С | |
bullet-lens | 6 | 3.6 | LB-HRFZ-SI-D6-T3.6 | |
bullet-lens | 6 | 3.7 | LB-HRFZ-SI-D6-T3.7 | |
bullet-lens | 6 | 3.9 | LB-HRFZ-SI-D6-T3.9-С | |
bullet-lens | 6 | 3.96 | LB-HRFZ-SI-D6-T3.96 | |
bullet-lens with the indent | 6 | 3.96 | LB-HRFZ-SI-D6-T3.96 | |
bullet-lens | 6 | 4.2 | LB-HRFZ-SI-D6-T4.2 | |
bullet-lens | 6 | 4.2 | LB-HRFZ-SI-D6-T4.2-С | |
bullet-lens | 7.95 | 5.4 | LB-HRFZ-SI-D7.95-T5.4 | |
bullet-lens | 8 | 4 | LB-HRFZ-SI-D8-T4-C | |
bullet-lens | 8 | 4.4 | LB-HRFZ-SI-D8-T4.4-C | |
bullet-lens | 8 | 4.8 | LB-HRFZ-SI-D8-T4.8-C | |
bullet-lens | 8 | 4.9 | LB-HRFZ-SI-D8-T4.95 | |
bullet-lens | 8 | 5.2 | LB-HRFZ-SI-D8-T5.2-C | |
bullet-lens | 8 | 5.21 | LB-HRFZ-SI-D8-T5.21 | |
bullet-lens | 8 | 5.3 | LB-HRFZ-SI-D8-T5.3 | |
bullet-lens | 9 | 6.6 | LB-HRFZ-SI-D9-T6.6 | |
bullet-lens | 9 | 6.65 | LB-HRFZ-SI-D9-T6.65 | |
bullet-lens | 9 | 6.65 | LB-HRFZ-SI-D9-T6.65 | |
bullet-lens | 9 | 6.7 | LB-HRFZ-SI-D9-T6.7 | |
bullet-lens | 9 | 6.675 | LB-HRFZ-SI-D9-T6.675 | |
bullet-lens | 9.86 | 6.64 | LB-HRFZ-SI-D9.86-T6.64 | |
bullet-lens | 9.9 | 5.62 | LB-HRFZ-SI-D9.9-T5.62 | |
bullet-lens | 10 | 5.62 | LB-HRFZ-SI-D10-T5.62 | |
bullet-lens | 10 | 6 | LB-HRFZ-SI-D10-T6 | |
bullet-lens | 10 | 6.46 | LB-HRFZ-SI-D10-T6.46 | |
bullet-lens | 10 | 6.52 | LB-HRFZ-SI-D10-T6.52 | |
bullet-lens | 10 | 6.828 | LB-HRFZ-SI-D10-T6.828-C | |
bullet-lens | 10 | 7.25 | LB-HRFZ-SI-D10-T7.25 | |
bullet-lens | 10 | 8.46 | LB-HRFZ-SI-D10-T8.46 | |
bullet-lens | 10 | 8.5 | LB-HRFZ-SI-D10-T8.5 | |
bullet-lens | 11.2 | 7.69 | LB-HRFZ-SI-D11.2-T7.69-C | |
bullet-lens | 12 | 7.5 | LB-HRFZ-SI-D12-T7.5 | |
bullet-lens | 12 | 7.6 | LB-HRFZ-SI-D12-T7.6 | |
bullet-lens | 12 | 8 | LB-HRFZ-SI-D12-T8 | |
bullet-lens | 14 | 9.1 | LB-HRFZ-SI-D14-T9.1 | |
bullet-lens | 16 | 10.5 | LB-HRFZ-SI-D16-T10.5 | |
plano-convex | 10 | 4.4 | 2.7 | LPX-HRFZ-SI-D10-F2.7 |
plano-convex | 12.7 | 9.8 | 3 | LPX-HRFZ-SI-D12.7-F9.8 |
plano-convex | 25.4 | 9.8 | 5.7 | LPX-HRFZ-SI-D25.4-F9.8 |
plano-convex | 25.4 | 9.8 | 5.7 | LPX-HRFZ-SI-D25.4-F9.8-С |
plano-convex | 25.4 | 9.8 | 5.7 | LPX-HRFZ-SI-D25.4-F9.8 |
plano-convex | 25.4 | 25 | 4.5 | LPX-HRFZ-SI-D25.4-F25 |
plano-convex | 25.4 | 50 | 3.7 | LPX-HRFZ-SI-D25.4-F50 |
plano-convex | 38 | 10 | LPX-HRFZ-SI-D38-Т10 | |
plano-convex | 38.1 | 25 | 5.05 | LPX-HRFZ-SI-D38.1-F25 |
plano-convex | 38.1 | 25 | 5.05 | LPX-HRFZ-SI-D38.1-F25-C |
plano-convex | 38.1 | 38.1 | 5 | LPX-HRFZ-SI-D38.1-F38.1 |
plano-convex | 38.1 | 50 | 5 | LPX-HRFZ-SI-D38.1-F50 |
plano-convex | 38.1 | 76.9 | 2.02 | LPX-HRFZ-SI-D38.1-F76.9 |
plano-convex | 38.1 | 150 | 4 | LPX-HRFZ-SI-D38.1-F150 |
plano-convex | 55 | - | 6 | LPХ-HRFZ-SI-D55-Т6-С |
plano-convex | 55 | - | 6 | LPХ-HRFZ-SI-D55-Т6 |
plano-convex | 75 | 25 | 16.1 | LPX-HRFZ-SI-D75-F25 |
plano-convex | 75 | 200 | 4.4 | LPX-HRFZ-SI-D75-F200 |
plano-convex | 76.2 | 25 | 16.1 | LPX-HRFZ-SI-D76.2-F25 |
plano-convex | 76.2 | 75 | 6.9 | LPX-HRFZ-SI-D76.2-F75 |
plano-convex | 76.2 | 200 | 4.4 | LPX-HRFZ-SI-D76.2-F200 |
plano-convex with central hole | 19 | - | - | LPX-HRFZ-SI-D19-C |
plano-concave | 50.8 | 414 | 3 | LPС-HRFZ-SI-D50.8-T3 |
bi-convex | 25 | 23.2 | 2.4 | LBX-HRFZ-SI-D25-F23.2 |
bi-convex | 75 | 100 | 20 | LBX-HRFZ-SI-D75-F100 |
negative meniscus | 12 | 6.68 | 1 | LNM-HRFZ-SI-D12-F6.68 |
positive meniscus | 25.4 | 25 | 3.5 | LPM-HRFZ-SI-D25.4-F25 |
positive meniscus | 25.4 | 25 | 5 | LPM-HRFZ-SI-D25.4-F25 |
positive meniscus | 25.4 | 25 | 5 | LPM-HRFZ-SI-D25.4-F25-С |
positive meniscus | 25.4 | 25 | 5 | LPM-HRFZ-SI-D25.4-F25-С |
positive meniscus | 25.4 | 25 | 5 | LPM-HRFZ-SI-D25.4-F25-С |
positive meniscus | 25.4 | 25 | 5 | LPM-HRFZ-SI-D25.4-F25 |
positive meniscus | 25.4 | 25.4 | 5 | LPM-HRFZ-SI-D25.4-F25.4 |
positive meniscus | 25.4 | 50 | 5 | LPM-HRFZ-SI-D25.4-F50 |
positive meniscus | 25.4 | 50 | 5 | LPM-HRFZ-SI-D25.4-F50-С |
positive meniscus | 25.4 | 100 | 5 | LPM-HRFZ-SI-D25.4-F100 |
positive meniscus | 25.4 | 200 | 5 | LPM-HRFZ-SI-D25.4-F200 |
positive meniscus | 25.4 | 400 | 5 | LPM-HRFZ-SI-D25.4-F400 |
positive meniscus | 30 | 13 | 7 | LPM-HRFZ-SI-D30-F13 |
positive meniscus | 30 | 13 | 7 | LPM-HRFZ-SI-D30-F13-С |
positive meniscus | 30 | 15 | 6.4 | LPM-HRFZ-SI-D30-F15-С |
positive meniscus | 38 | 46.6 | 9 | LPM-HRFZ-SI-D38-F46.6-С |
positive meniscus | 38.1 | 38.1 | 5 | LPM-HRFZ-SI-D38.1-F38.1 |
positive meniscus | 38.1 | 50 | 5 | LPM-HRFZ-SI-D38.1-F50 |
positive meniscus | 38.1 | 75 | 5 | LPM-HRFZ-SI-D38.1-F75 |
positive meniscus | 38.1 | 100 | 5 | LPM-HRFZ-SI-D38.1-F100 |
positive meniscus | 38.1 | 150 | 4 | LPM-HRFZ-SI-D38.1-F150 |
positive meniscus | 38.1 | 150 | 5 | LPM-HRFZ-SI-D38.1-F150 |
positive meniscus | 38.1 | 200 | 5 | LPM-HRFZ-SI-D38.1-F200 |
positive meniscus | 40 | 17 | 8.4 | LPM-HRFZ-SI-D40-F17-С |
positive meniscus | 40 | 17 | 8.5 | LPM-HRFZ-SI-D40-F17 |
positive meniscus | 40 | 20 | 8.4 | LPM-HRFZ-SI-D40-F20-С |
positive meniscus | 50.8 | 25 | 7.8 | LPM-HRFZ-SI-D50.8-F25 |
positive meniscus | 50.8 | 50 | 5 | LPM-HRFZ-SI-D50.8-F50 |
positive meniscus | 50.8 | 50 | 5 | LPM-HRFZ-SI-D50.8-F50-С |
positive meniscus | 50.8 | 50 | 7 | LPM-HRFZ-SI-D50.8-F50 |
positive meniscus | 50.8 | 50 | 7 | LPM-HRFZ-SI-D50.8-F50-С |
positive meniscus | 50.8 | 75 | 5 | LPM-HRFZ-SI-D50.8-F75 |
positive meniscus | 50.8 | 75 | 7 | LPM-HRFZ-SI-D50.8-F75 |
positive meniscus | 50.8 | 100 | 5 | LPM-HRFZ-SI-D50.8-F100 |
positive meniscus | 50.8 | 100 | 5 | LPM-HRFZ-SI-D50.8-F100 |
positive meniscus | 50.8 | 100 | 7 | LPM-HRFZ-SI-D50.8-F100 |
positive meniscus | 50.8 | 150 | 7 | LPM-HRFZ-SI-D50.8-F150 |
positive meniscus | 50.8 | 200 | 5 | LPM-HRFZ-SI-D50.8-F200 |
positive meniscus | 50.8 | 200 | 5 | LPM-HRFZ-SI-D50.8-F200 |
positive meniscus | 50.8 | 200 | 7 | LPM-HRFZ-SI-D50.8-F200 |
positive meniscus | 61 | - | 7.2 | LPM-HRFZ-SI-D61-Т7.2-С |
positive meniscus | 63 | 59.53 | 5.7 | LPM-HRFZ-SI-D63-F59.53-С |
cylindrical hyper-hemisphere | 10х15 | 5.2 | LCHS-HRFZ-SI-L10-H15-T5.2 | |
cylindrical hyper-hemisphere | 10х15 | 6.56 | LCHS-HRFZ-SI-L10-H15-T6.56 | |
cylindrical hyper-hemisphere | 10х20 | 6.2 | LCHS-HRFZ-SI-L10-H20-T6.2 | |
cylindrical hyper-hemisphere | 10х35 | 6.2 | LCHS-HRFZ-SI-L10-H35-T6.2 | |
cylindrical hyper-hemisphere | 12х24 | 8.48 | LCHS-HRFZ-SI-L12-H24-T8.48 | |
cylindrical hyper-hemisphere | 12.7х38.1 | 7.62 | LCHS-HRFZ-SI-L12.7-H38.1-T7.62 | |
cylindrical hyper-hemisphere | 20х6 | 4 | LCHS-HRFZ-SI-L20-H6-T4 | |
cylindrical hyper-hemisphere | 25x25 | 30 | 3.1 | LCHS-HRFZ-SI-L25-H25-T3.1 |
cylindrical hyper-hemisphere | 25х50 | 50 | 2.6 | LCHS-HRFZ-SI-L25-H50-F50 |
cylindrical hyper-hemisphere | 25х100 | 17.25 | LCHS-HRFZ-SI-L25-H100-T17.25 | |
cylindrical plano- convex | 150 | 850 | 7.5 | LРC-CYL-HRFZ-SI-D150-F850 |
